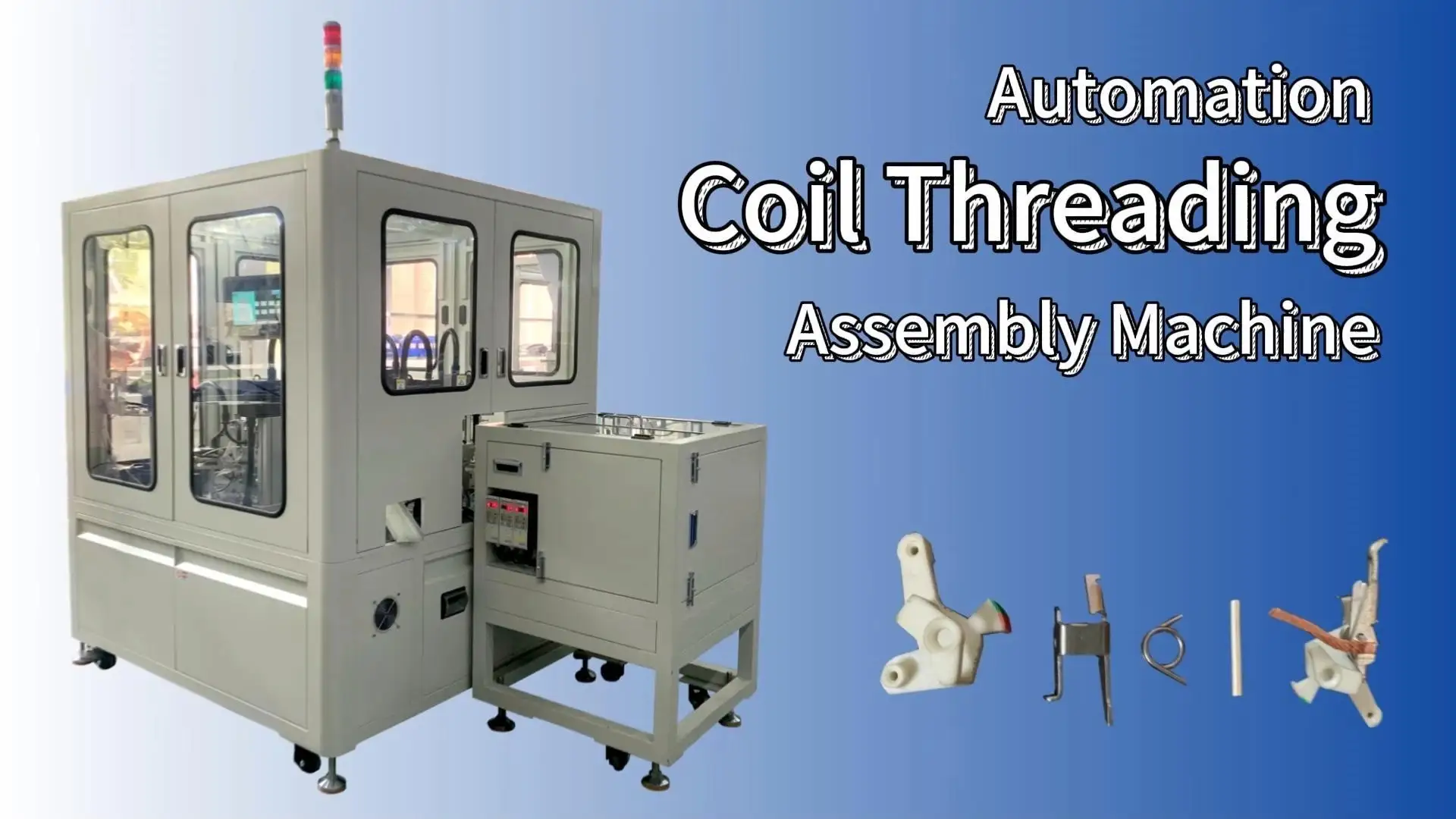

Micro Circuit Breaker Automatic Assembly Machine for Coil Threading

The coil threading automatic assembly machine is mainly used in micro-circuit breaker electrical production. It is a high-precision manufacturing equipment designed to realize the automation of the assembly process. The equipment integrates a PLC control system and can automatically complete the feeding and assembly of various components. Ensure the high precision, efficiency, and reliability of the assembly process.

    oops...!

    no product data.

    Go to homepage

     Micro Circuit Breaker Automatic Assembly Machine for Coil Threading 3 Technical Parameters

    Components Qty

    5 parts

    Cycle Time

    20-30pcs/min

    Input Voltage

    200-240VAC, 50-60HZ

    Input Air Pressure

    4.5-8.0kgf/cm2

    Certificate

    CE

    OEE

    90%

    First Pass Yield

    99.5%

    Standard Parts Brand

    Panasonic, Mitsubishi, SMC, Keyence, Omron

    Requested Operators

    1

    Micro Circuit Breaker Automatic Assembly Machine for Coil Threading 4 Machine Feature

    Micro Circuit Breaker Automatic Assembly Machine for Coil Threading 5
    01
    Flexibility
    Can be flexibly adjusted according to production needs.
    Micro Circuit Breaker Automatic Assembly Machine for Coil Threading 6
    02
    Security
    With a variety of sensors and protective devices to detect abnormalities.
    Micro Circuit Breaker Automatic Assembly Machine for Coil Threading 7
    03
    Intelligent
    Integrated intelligent control system to realize remote monitoring and control.
    Micro Circuit Breaker Automatic Assembly Machine for Coil Threading 8
    04
    Traceability
    Equipped with data recording and traceability system.

    After we complete the assembly and debugging of the equipment, we will inspect and select appropriate packaging materials to protect the equipment from shock, moisture, and fixation.

    Make sure the equipment reaches its destination in good condition.

    Protectibe Film Wrapping
    01
    Protectibe Film Wrapping
    Vacuum Package
    02
    Vacuum Package
    Wooden Case Packaging
    03
    Wooden Case Packaging
    Trucking
    04
    Trucking

    ● On site installation, debugging, training and mass production follow up.

    ● 1 year Warranty from date of shipment, lifetime maintenance service.

    ● Response any defects claims within 4 hours for mainland customers.

    ● 12 hours for overseas customers by telephone or mail.

    ● Supply remote services by smart glass, team viewer, Teams and camera.

    Installation in Minebea Malaysia
    Installation in Minebea Malaysia
    Installation in ZF Serbia
    Installation in ZF Serbia
    Installation in Havelles India
    Installation in Havelles India
    Installation in Schneider Germany
    Installation in Schneider Germany
    Installation in Schneider Poland
    Installation in Schneider Poland

    1. The technical training described below is free technical training, and no additional fees are charged. The technical training consists of the project's on site general manager, mechanical engineer and electrical engineer, who are responsible for implementing the entire training plan.


    2. The whole process of installation from the installation to the commissioning is carried out by the expert group and the production technology, equipment management and production operators designated by the customer. At the same time, the expert group is responsible for technical guidance to the customer's technical staff throughout the implementation process. Training with technical points, including:

    a. Equipment system principle and operation method, maintenance.

    b. Equipment operation and debugging, parameter setting.

    c. Operation and application of the software.

    d. Operating procedures and precautions for the equipment.

    e. Safety protection measures for various action agencies.

    f. Maintenance of electrical systems and mechanical parts.

    g. How to make correct judgment, analysis and how to troubleshoot when the equipment fails.

    h. Solutions to possible dangerous situations.
