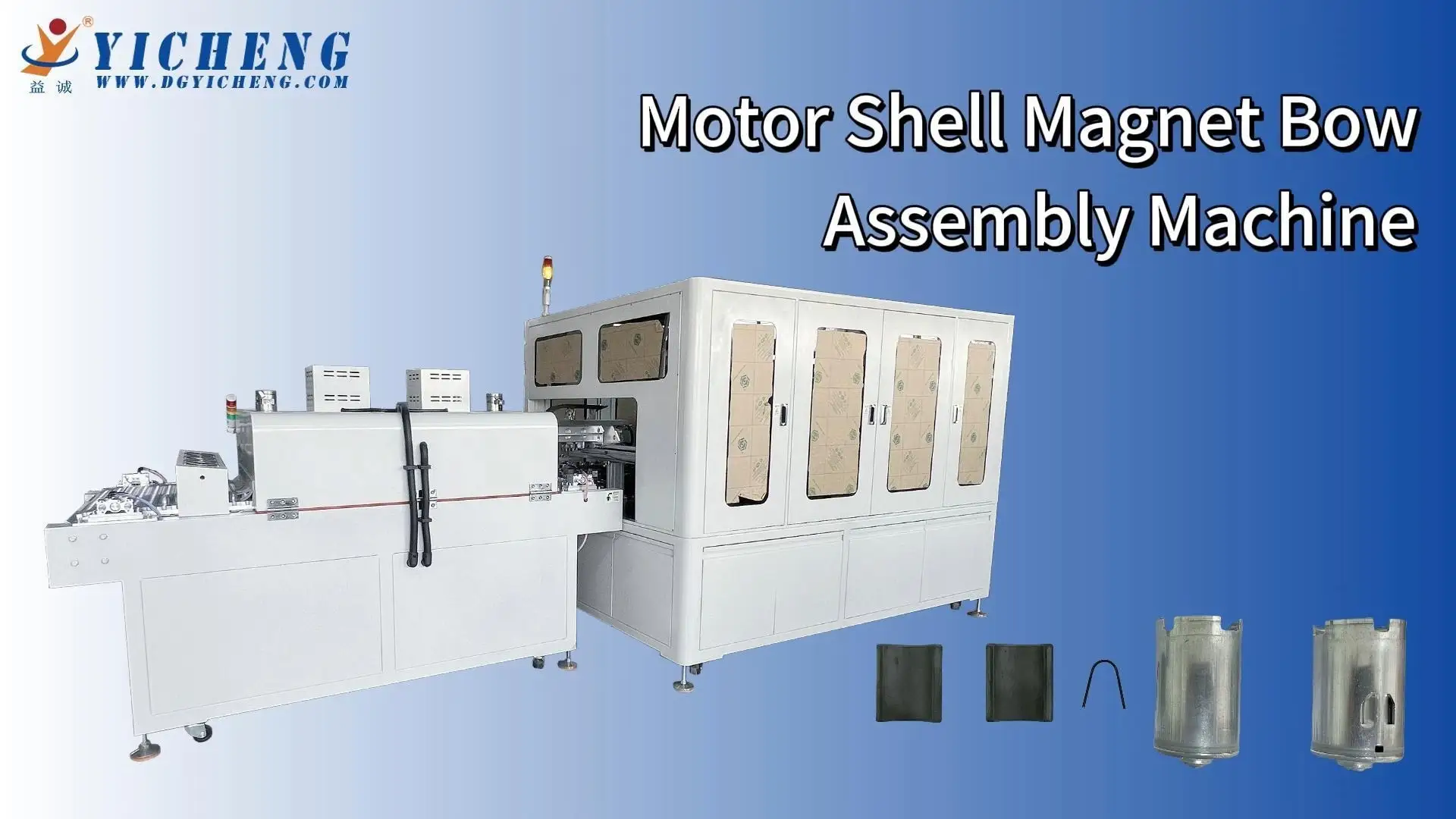

High-Efficiency Motor Frame Magnet Insertion Machine Automated Assembly Solution
The Motor Frame Magnet Insertion Machine is a high-efficiency automated device designed for the motor manufacturing industry, specializing in the precise and rapid assembly of magnets into motor frames. Utilizing advanced clip-type magnet insertion technology, this machine ensures accurate positioning and secure assembly, significantly improving production efficiency and product consistency.
✅ High-Precision Assembly – Equipped with a precision guidance system to ensure magnet placement without deviation or damage.
✅ Fully Automated Operation – Reduces manual intervention, lowers labor costs, and enhances production efficiency.
✅ Intelligent Control – PLC + touchscreen operation with adjustable parameters for smart production management.
| Components Qty | 4 parts |
| Cycle Time | 600 pcs/hour |
| Dimensions | 4M*2.3M*1.9M |
| OEE | 75% |
First Pass Yield | 95% |
Standard Parts Brand | Schneider, Festo , Keyence,Oriental motors,Misumi and etc |
Requested Operators | 1 |
Certificate | CE |
After we complete the assembly and debugging of the equipment, we will inspect and select appropriate packaging materials to protect the equipment from shock, moisture, and fixation.
Make sure the equipment reaches its destination in good condition.
● On site installation, debugging, training and mass production follow up.
● 1 year Warranty from date of shipment, lifetime maintenance service.
● Response any defects claims within 4 hours for mainland customers.
● 12 hours for overseas customers by telephone or mail.
● Supply remote services by smart glass, team viewer, Teams and camera.
