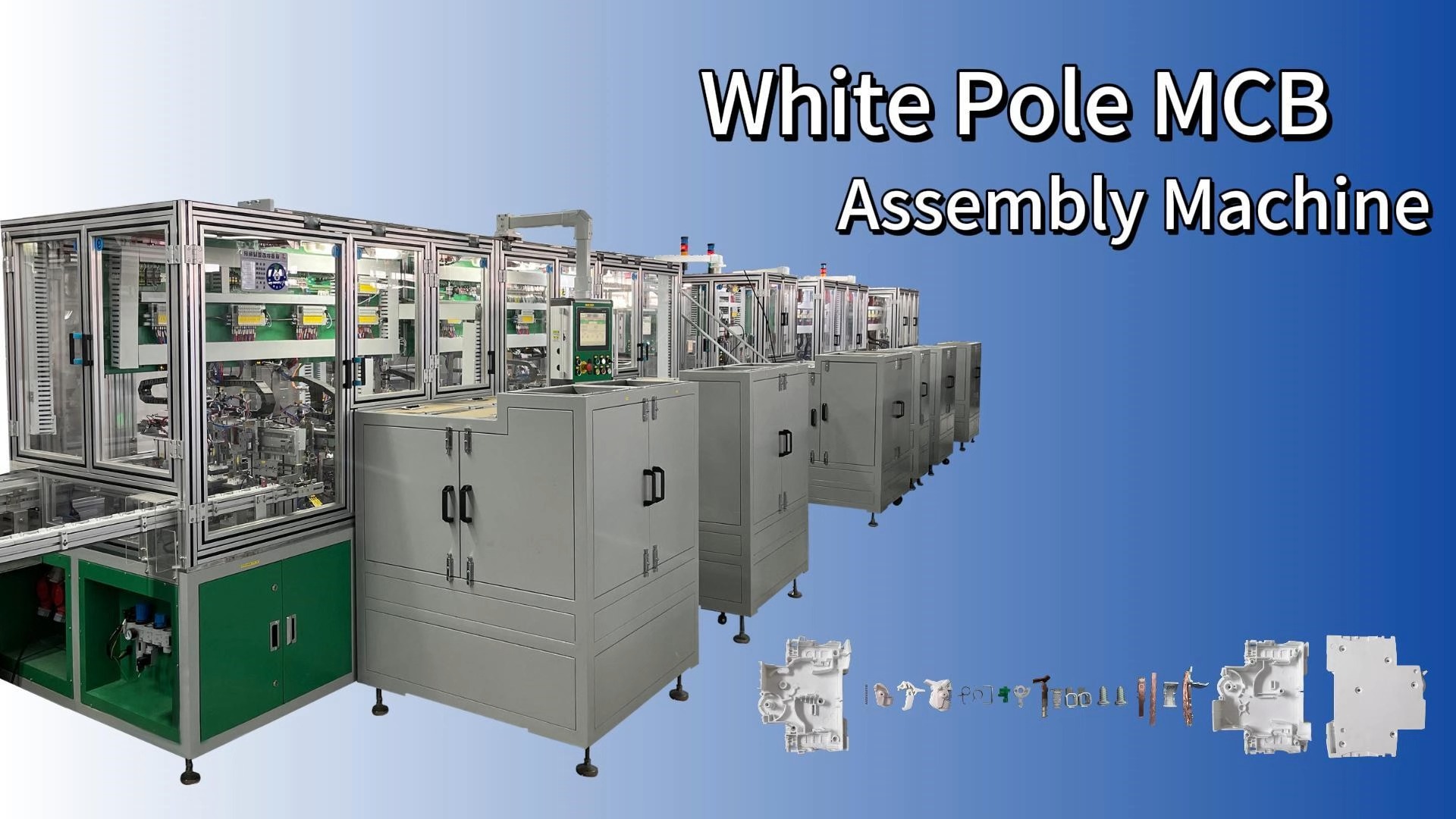

High-Efficiency Production Solution White Pole MCB Automatic Assembly Line
The White Pole Circuit Breaker Automatic Assembly Line integrates feeding, assembly, inspection, and sorting into one complete system. Equipped with advanced PLC control systems and high-precision robotic arms, this equipment ensures accuracy and consistency in every assembly step, significantly improving production efficiency and product yield.
✅ Automatic Production - Reduces manual intervention and labor costs
✅ High Speed & Efficiency - Production capacity up to 800 pcs/hour
✅ Precision Assembly - Servo-driven with positioning accuracy of ±0.02mm
✅ Smart Inspection - Integrated vision inspection system for real-time defect detection
| Components Qty | 22 parts |
| Cycle Time | 4.5 sec/pc |
| Weight | About 1500kg |
| OEE | 80% |
First Pass Yield | 98% |
Standard Parts Brand | Panasonic, Mitsubishi, SMC, Keyence, Omron |
Requested Operators | 2 operators |
Certificate | CE |
After we complete the assembly and debugging of the equipment, we will inspect and select appropriate packaging materials to protect the equipment from shock, moisture, and fixation.
Make sure the equipment reaches its destination in good condition.
● On site installation, debugging, training and mass production follow up.
● 1 year Warranty from date of shipment, lifetime maintenance service.
● Response any defects claims within 4 hours for mainland customers.
● 12 hours for overseas customers by telephone or mail.
● Supply remote services by smart glass, team viewer, Teams and camera.
1. The technical training described below is free technical training, and no additional fees are charged. The technical training consists of the project's on site general manager, mechanical engineer and electrical engineer, who are responsible for implementing the entire training plan.
2. The whole process of installation from the installation to the commissioning is carried out by the expert group and the production technology, equipment management and production operators designated by the customer. At the same time, the expert group is responsible for technical guidance to the customer's technical staff throughout the implementation process. Training with technical points, including:
a. Equipment system principle and operation method, maintenance.
b. Equipment operation and debugging, parameter setting.
c. Operation and application of the software.
d. Operating procedures and precautions for the equipment.
e. Safety protection measures for various action agencies.
f. Maintenance of electrical systems and mechanical parts.
g. How to make correct judgment, analysis and how to troubleshoot when the equipment fails.
h. Solutions to possible dangerous situations.
